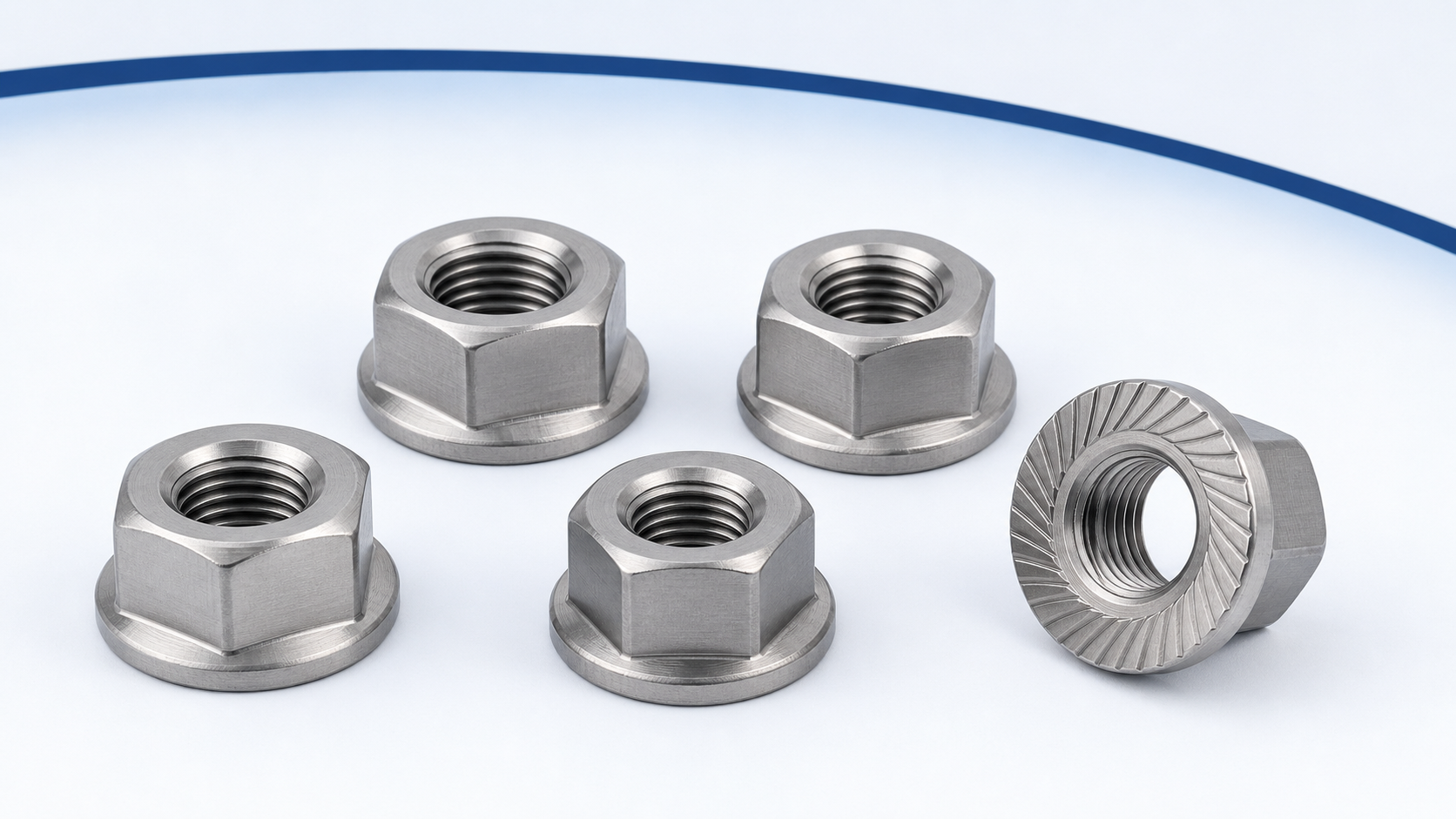

Grade 2 Titanium Flange Nuts

Commercially pure Grade 2 titanium flange nuts for corrosion-resistant joints requiring an integrated bearing flange. Plain, serrated or drawing-specific configurations are supplied to the required thread and inspection plan.

Material: Grade 2 / UNS R50400
Types: Plain, serrated or drawing-specific
Threads: Metric, UNC, UNF or drawing
Documents: MTC, traceability and dimensional report

Product Detail

Product Introduction

Grade 2 flange nuts combine a hex nut body with an integrated flange that distributes bearing load over a wider area. Joint approval must define whether the flange is plain or serrated, the mating surface, thread tolerance, torque method, reuse policy and corrosion environment.

Product Specifications

Product	Grade 2 Titanium Flange Nuts	Material	Titanium Grade 2 (UNS R50400)
Product Form	Plain, serrated or drawing-specific flange nut	Typical Inquiry Range	M3 to M20 typical inquiry range; inch and custom sizes by review
Dimensional References	ISO 4161, DIN 6923, ASME/ANSI or approved drawing	Threads / Dimensions	Metric coarse or fine, UNC, UNF or drawing-specific as applicable
Surface	Machined and cleaned; lubricant, anti-galling treatment or coating by agreement	Documents	MTC, heat/lot traceability and dimensional inspection report
Inspection	Dimensions, thread gauging, surface and agreed functional or mechanical tests	Supply Basis	Approved purchase order, invoked standard and drawing

Typical inquiry ranges are not a stock guarantee. Final manufacturability, tolerances and test requirements are confirmed against the complete RFQ.

Selection and Configuration

Plain flange: Provides a wider bearing surface without relying on serrations for resistance to rotation.
Serrated flange: Requires validation against the mating surface, coating, reuse policy and permitted surface marking.
Mating joint: Specify bolt material, thread tolerance, bearing surface, lubrication and installation torque procedure.

Standards and ordering definition: DIN 6923, ISO 4161 and ASME B18 references may be reviewed for dimensional geometry when expressly specified. They do not by themselves establish Grade 2 titanium chemistry, mechanical properties or finished-nut acceptance requirements.

Send a drawing or complete fastener definition
Include dimensions, quantity, mating parts, service conditions, finish and inspection requirements.

Request a Quotation

Chemical Composition – Titanium Grade 2

Maximum weight percent unless shown otherwise; titanium is the balance.

N max	C max	H max	Fe max	O max	Residual each / total	Ti
0.03	0.08	0.015	0.30	0.25	0.10 / 0.40	Balance

Mechanical Properties – Grade 2 Material Reference

Property	Annealed Grade 2 Material Reference Minimum
Ultimate tensile strength	345 MPa (50 ksi)
0.2% yield strength	275 MPa (40 ksi)
Elongation	20%

Material values do not automatically establish finished-fastener loadability. Finished-part acceptance depends on geometry, manufacturing route, condition and the expressly invoked fastener specification or drawing.

Typical Physical Properties

Property	Typical Value
Density	4.51 g/cm³
Elastic modulus	Approximately 105 GPa
Poisson ratio	Approximately 0.34
Thermal conductivity	Approximately 16.4 W/m·K
Coefficient of thermal expansion	Approximately 8.6 µm/m·K
Melting point	Approximately 1668°C

Physical values are typical engineering references and are not inspection acceptance limits.

Certificates & Inspection Records

SAKY ALLOY quality management system certificate

Services We Can Provide

Drawing ReviewGeometry, thread, tolerances and mating-component review.

Custom ManufacturingMetric, inch and drawing-specific production subject to review.

InspectionDimensional checks, thread gauging and agreed functional testing.

Surface OptionsCleaning, identification, lubricant or coating by agreement.

TraceabilityMTC, heat/lot records and inspection documentation.

Export SupportProtected packing, labeling and shipping documents.

Product Packaging

Grade 2 Titanium Flange Nuts are separated by size and lot, protected against thread and surface damage, and labeled with grade, dimensions, quantity and traceability reference. Inner bags, cartons and export cases are selected according to product geometry, quantity and shipping method.

Application Scenarios

Chemical Processing

Corrosion-resistant equipment joints selected against the complete process environment.

Power and energy equipment application environment

Power & Energy

Lightweight engineered assemblies requiring controlled dimensions and traceability.

Marine and shipbuilding application environment

Marine & Shipbuilding

Corrosion-resistant joints subject to galvanic, preload and service-condition review.

FAQ

What information is required to quote Grade 2 Titanium Flange Nuts?

Provide the titanium grade, product form, dimensional standard or drawing, thread or critical dimensions, quantity, surface treatment, mating parts, service conditions and required inspection documents.

Which standards apply to Grade 2 Titanium Flange Nuts?

DIN 6923, ISO 4161 and ASME B18 references may be reviewed for dimensional geometry when expressly specified. They do not by themselves establish Grade 2 titanium chemistry, mechanical properties or finished-nut acceptance requirements.

How are Grade 2 Titanium Flange Nuts inspected?

Available inspection includes MTC review, across-flats, height and flange diameter measurement, serration inspection where applicable, thread gauging, visual examination and heat/lot traceability.
