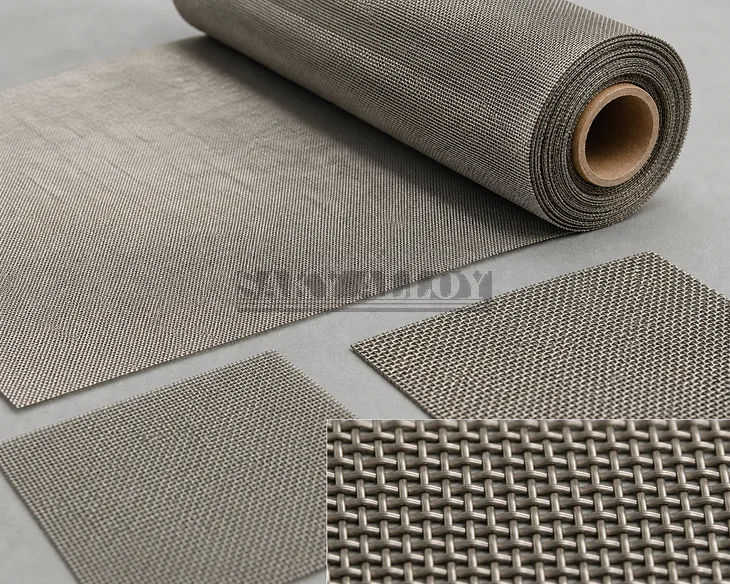

Titanium Woven Wire Mesh
Titanium Woven Wire Mesh supplied by grade, woven wire mesh geometry, opening, thickness or wire diameter, width, length, edge, surface and inspection requirements.
- Material
- Grade 1, Grade 2 or specified titanium
- Form
- Woven Wire Mesh
- Dimensions
- Opening geometry and section size by RFQ
- Documents
- MTC and dimensional inspection
Product Detail
Product Introduction
Titanium Woven Wire Mesh is an open-area titanium product selected for corrosion resistance, low density, screening, flow distribution, support or electrochemical service. Woven, expanded and perforated products have different geometry and mechanical behavior and must be identified explicitly.
Product Specifications
| Product | Titanium Woven Wire Mesh | Grade | Titanium Grade 1, Grade 2 or specified alloy |
|---|---|---|---|
| Standard | Titanium mesh and open-area sheet are commonly supplied to a customer drawing, agreed dimensional schedule and applicable raw-material specification. The order controls weave or opening geometry, tolerances, edges and inspection. | Size & Form | Woven wire mesh in sheets, cut panels or rolls as feasible; exact opening, section dimensions, width and length by RFQ |
| Tolerance | Drawing or order-defined opening, wire/strand/sheet size, pitch, open area, cut size, edge and flatness requirements | Supply Condition | Clean mill-finish sheets, panels or rolls with edge protection, interleaving and export packing |
| Inspection | Material certificate, wire or sheet/strand measurement, mesh count or opening and pitch, width and length, open area where specified, edge and burr inspection, flatness, surface and heat/lot traceability. | Documents | MTC, heat/lot traceability and agreed inspection reports |
Send the complete material RFQ
Include grade, specification revision, dimensions, tolerance, quantity, condition, tests and destination.
Chemical Composition
Weight percent; maximum unless a range is shown. Titanium is the balance. The ordered specification and grade control.
| Grade / UNS | Principal Alloying Elements | Fe max | O max | C max | N max | H max | Ti |
|---|---|---|---|---|---|---|---|
| Grade 1 / R50250 | — | 0.20 | 0.18 | 0.08 | 0.03 | 0.015 | Balance |
| Grade 2 / R50400 | — | 0.30 | 0.25 | 0.08 | 0.03 | 0.015 | Balance |
Mechanical Properties – Annealed Material Reference
| Grade | Ultimate Tensile Strength min | 0.2% Yield Strength min | Elongation min |
|---|---|---|---|
| Grade 1 | 240 MPa | 170 MPa | 24% |
| Grade 2 | 345 MPa | 275 MPa | 20% |
Representative minima only. Product form, section size, heat treatment and the invoked specification determine the certified acceptance values.
Typical Physical Properties
| Grade | Density | Elastic Modulus | Thermal Expansion |
|---|---|---|---|
| Grade 1 | 4.51 g/cm³ | Approx. 103 GPa | Approx. 8.6 µm/m·K |
| Grade 2 | 4.51 g/cm³ | Approx. 105 GPa | Approx. 8.6 µm/m·K |
Typical engineering references, not inspection acceptance limits.
Certificates & Inspection Records
Services We Can Provide
Product Packaging
Wire is protected in coils, spools or straight-length bundles with moisture-resistant wrapping and labels for grade, diameter, heat and quantity.
Application Scenarios
Chemical filtration and separation
Material grade, dimensions, condition and inspection must be matched to the application requirements.
Electrochemical electrodes and current collectors
Material grade, dimensions, condition and inspection must be matched to the application requirements.
Marine, aerospace and industrial screening or guards
Material grade, dimensions, condition and inspection must be matched to the application requirements.
FAQ
What is the difference between woven, expanded and perforated titanium?
Woven mesh interlaces wires, expanded metal slits and stretches sheet into strands, and perforated sheet removes material in a controlled hole pattern.
How should opening size be specified?
Use mesh count and wire diameter for woven mesh, SWD/LWD and strand data for expanded metal, or hole diameter/shape and pitch for perforated sheet.
What information is needed for quotation?
Provide grade, exact form, opening and section dimensions, size, edges, surface, quantity, inspection and certificates.
