Grade 5 Titanium Forged Disc

Grade 5 Ti-6Al-4V titanium forged discs and round blanks supplied by diameter, thickness, machining allowance, heat-treatment condition, ultrasonic testing and material-certification requirements.

Material: Grade 5 / Ti-6Al-4V / UNS R56400
Product Form: Forged disc, round blank or machined preform
Standard: ASTM B381 / ASME SB381 or approved drawing
Documents: MTC, heat traceability and inspection records

Product Detail

Product Introduction

Grade 5 titanium forged discs are produced from Ti-6Al-4V stock through a controlled forging and heat-treatment route for high-strength machined components. The approved order should define finished or forging dimensions, machining allowance, grain-flow or reduction requirements, heat treatment, surface condition, ultrasonic-testing class and traceability.

Product Specifications

Product	Grade 5 Titanium Forged Disc	Grade	Titanium Grade 5 / Ti-6Al-4V / UNS R56400
Standard	ASTM B381 / ASME SB381 for titanium forgings when expressly invoked; aerospace or drawing-controlled orders may require a specific AMS material specification, heat-treatment route, ultrasonic acceptance class and additional test coupons.	Size & Form	Forged discs and round blanks; outside diameter, thickness, bore if required, machining allowance and finished dimensions are confirmed by RFQ
Tolerance	As-forged, rough-machined or finish-machined tolerance according to the approved drawing	Supply Condition	Forged and annealed or order-specific heat treatment; as-forged, sawn, turned or machined surface
Inspection	MTC review, heat/lot traceability, chemistry and tensile results, dimensions, surface inspection and ultrasonic testing when specified; macrostructure, microstructure or third-party inspection by agreement.	Documents	MTC, heat/lot traceability and agreed inspection reports

Send the complete material RFQ
Include grade, specification revision, dimensions, tolerance, quantity, condition, tests and destination.

Request a Quotation

Chemical Composition

Weight percent; maximum unless a range is shown. Titanium is the balance. The ordered specification and grade control.

Grade / UNS	Principal Alloying Elements	Fe max	O max	C max	N max	H max	Ti
Grade 5 / R56400	Al 5.50–6.75; V 3.50–4.50	0.40	0.20	0.08	0.05	0.015	Balance

Mechanical Properties – Annealed Material Reference

Grade	Ultimate Tensile Strength min	0.2% Yield Strength min	Elongation min
Grade 5	895 MPa	828 MPa	10%

Representative minima only. Product form, section size, heat treatment and the invoked specification determine the certified acceptance values.

Typical Physical Properties

Grade	Density	Elastic Modulus	Thermal Expansion
Grade 5	4.43 g/cm³	Approx. 114 GPa	Approx. 8.6 µm/m·K

Typical engineering references, not inspection acceptance limits.

Certificates & Inspection Records

SAKY ALLOY quality management system certificate

Services We Can Provide

Specification ReviewGrade, revision, condition and supplementary requirements.

Cut-to-Size SupplyDimensions, machining allowance and tolerances by review.

InspectionDimensions, surface, chemistry and mechanical documentation.

Testing OptionsPMI, UT, PT or other agreed testing where applicable.

TraceabilityMTC, heat/lot identity and inspection records.

Export SupportProtected packing, labels and shipping documents.

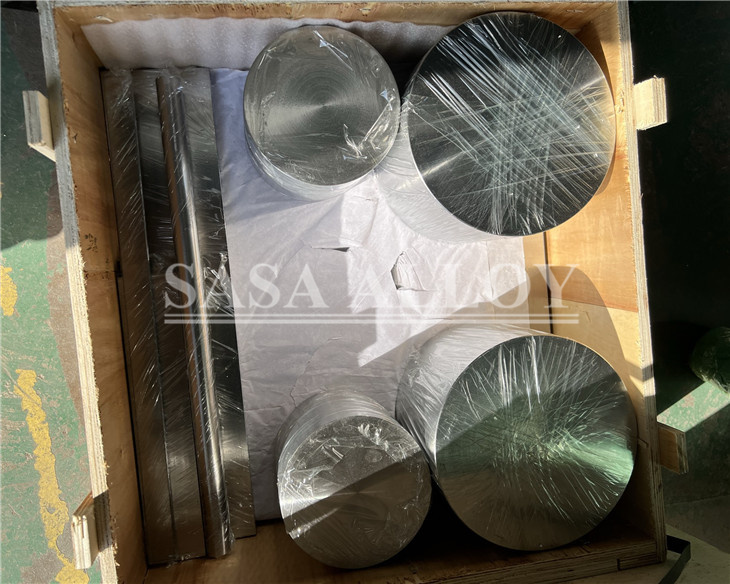

Product Packaging

Blocks and forgings are protected at machined surfaces, secured on pallets or in export cases, and identified by grade, heat, dimensions and quantity.

Application Scenarios

Aerospace structural and rotating components

Material grade, dimensions, condition and inspection must be matched to the application requirements.

Chemical and energy equipment

Material grade, dimensions, condition and inspection must be matched to the application requirements.

Marine and high-performance machined components

Material grade, dimensions, condition and inspection must be matched to the application requirements.

FAQ

What information is required to quote Grade 5 Titanium Forged Disc?

Provide the titanium grade, product form, dimensional standard or drawing, thread or critical dimensions, quantity, surface treatment, mating parts, service conditions and required inspection documents.

Which standards apply to Grade 5 Titanium Forged Disc?

ASTM B381 / ASME SB381 for titanium forgings when expressly invoked; aerospace or drawing-controlled orders may require a specific AMS material specification, heat-treatment route, ultrasonic acceptance class and additional test coupons.

How are Grade 5 Titanium Forged Disc inspected?

MTC review, heat/lot traceability, chemistry and tensile results, dimensions, surface inspection and ultrasonic testing when specified; macrostructure, microstructure or third-party inspection by agreement.
