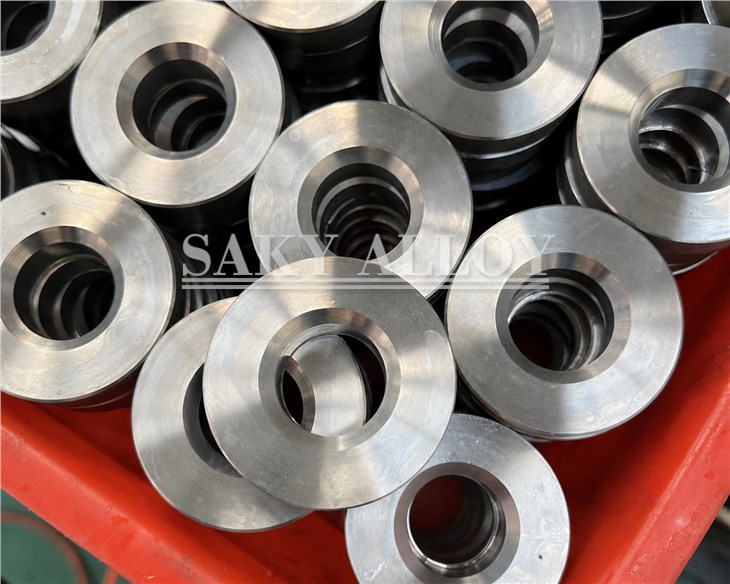

ASTM B381 Titanium Forged Ring

Titanium forged rings supplied as forged, rolled, rough-machined or finish-machined blanks. Grade, dimensions, machining allowance, heat treatment, NDT and certification are reviewed against ASTM B381, ASME SB381 or the approved drawing.

Materials: Titanium Grades 2, 5, 7 and 12; other grades by review
Product Form: Forged ring, rolled ring, ring blank or machined ring
Standard: ASTM B381 / ASME SB381 or approved drawing
Documents: MTC, heat traceability and agreed inspection records

Product Detail

Product Introduction

Titanium forged rings are produced for components that require continuous circumferential grain flow, corrosion resistance and a controlled machining envelope. Each order should define alloy grade, outside and inside diameters, height, machining allowance, forging and heat-treatment route, surface condition, nondestructive testing and traceability.

Product Specifications

Product	ASTM B381 Titanium Forged Ring	Grade	Titanium Grades 2, 5, 7 and 12; order-specific alloy grade
Standard	ASTM B381 / ASME SB381 when expressly invoked for titanium forgings. Aerospace, pressure-equipment or drawing-controlled rings may require a specific AMS or customer specification, heat treatment, test coupon orientation and supplementary NDT.	Size & Form	Outside diameter, inside diameter, height, section size and machining allowance are confirmed by RFQ and approved drawing
Tolerance	As-forged, rough-machined or finish-machined tolerance according to the approved drawing	Supply Condition	Forged or rolled; annealed or order-specific heat treatment; as-forged, turned, bored or finish-machined surface
Inspection	MTC review, heat/lot traceability, chemistry and mechanical results, dimensional and surface inspection; ultrasonic testing, liquid-penetrant testing, macrostructure, microstructure or third-party inspection by agreement.	Documents	MTC, heat/lot traceability and agreed inspection reports

Send the complete material RFQ
Include grade, specification revision, dimensions, tolerance, quantity, condition, tests and destination.

Request a Quotation

Chemical Composition

Weight percent; maximum unless a range is shown. Titanium is the balance. The ordered specification and grade control.

Grade / UNS	Principal Alloying Elements	Fe max	O max	C max	N max	H max	Ti
Grade 2 / R50400	—	0.30	0.25	0.08	0.03	0.015	Balance
Grade 5 / R56400	Al 5.50–6.75; V 3.50–4.50	0.40	0.20	0.08	0.05	0.015	Balance
Grade 7 / R52400	Pd 0.12–0.25	0.30	0.25	0.08	0.03	0.015	Balance
Grade 12 / R53400	Mo 0.20–0.40; Ni 0.60–0.90	0.30	0.25	0.08	0.03	0.015	Balance

Mechanical Properties – Annealed Material Reference

Grade	Ultimate Tensile Strength min	0.2% Yield Strength min	Elongation min
Grade 2	345 MPa	275 MPa	20%
Grade 5	895 MPa	828 MPa	10%
Grade 7	345 MPa	275 MPa	20%
Grade 12	483 MPa	345 MPa	18%

Representative minima only. Product form, section size, heat treatment and the invoked specification determine the certified acceptance values.

Typical Physical Properties

Grade	Density	Elastic Modulus	Thermal Expansion
Grade 2	4.51 g/cm³	Approx. 105 GPa	Approx. 8.6 µm/m·K
Grade 5	4.43 g/cm³	Approx. 114 GPa	Approx. 8.6 µm/m·K
Grade 7	Approx. 4.51 g/cm³	Approx. 105 GPa	Approx. 8.6 µm/m·K
Grade 12	Approx. 4.54 g/cm³	Approx. 103 GPa	Approx. 8.6 µm/m·K

Typical engineering references, not inspection acceptance limits.

Certificates & Inspection Records

SAKY ALLOY quality management system certificate

Services We Can Provide

Specification ReviewGrade, revision, condition and supplementary requirements.

Cut-to-Size SupplyDimensions, machining allowance and tolerances by review.

InspectionDimensions, surface, chemistry and mechanical documentation.

Testing OptionsPMI, UT, PT or other agreed testing where applicable.

TraceabilityMTC, heat/lot identity and inspection records.

Export SupportProtected packing, labels and shipping documents.

Product Packaging

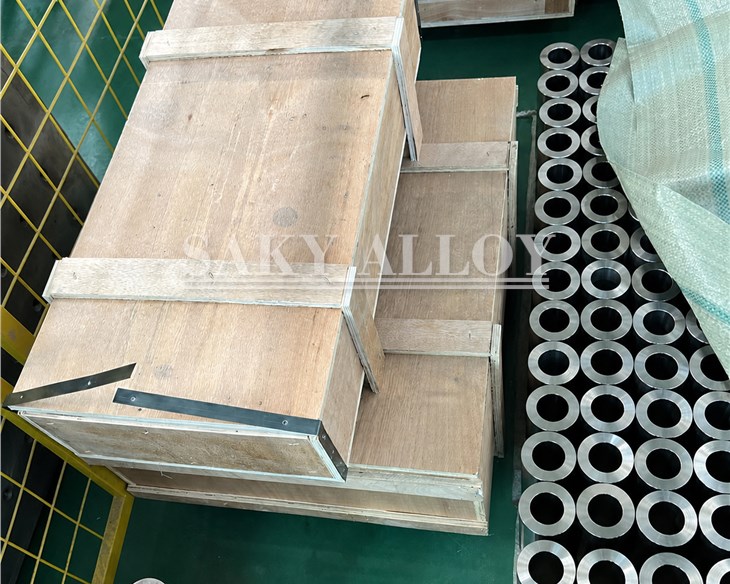

Blocks and forgings are protected at machined surfaces, secured on pallets or in export cases, and identified by grade, heat, dimensions and quantity.

ASTM B381 Titanium Forged Ring export packaging

Application Scenarios

Chemical and pressure-equipment components

Material grade, dimensions, condition and inspection must be matched to the application requirements.

Marine, offshore and energy equipment

Material grade, dimensions, condition and inspection must be matched to the application requirements.

Aerospace and high-integrity machined components

Material grade, dimensions, condition and inspection must be matched to the application requirements.

FAQ

What information is required to quote ASTM B381 Titanium Forged Ring?

Provide the titanium grade, product form, dimensional standard or drawing, thread or critical dimensions, quantity, surface treatment, mating parts, service conditions and required inspection documents.

Which standards apply to ASTM B381 Titanium Forged Ring?

ASTM B381 / ASME SB381 when expressly invoked for titanium forgings. Aerospace, pressure-equipment or drawing-controlled rings may require a specific AMS or customer specification, heat treatment, test coupon orientation and supplementary NDT.

How are ASTM B381 Titanium Forged Ring inspected?

MTC review, heat/lot traceability, chemistry and mechanical results, dimensional and surface inspection; ultrasonic testing, liquid-penetrant testing, macrostructure, microstructure or third-party inspection by agreement.
