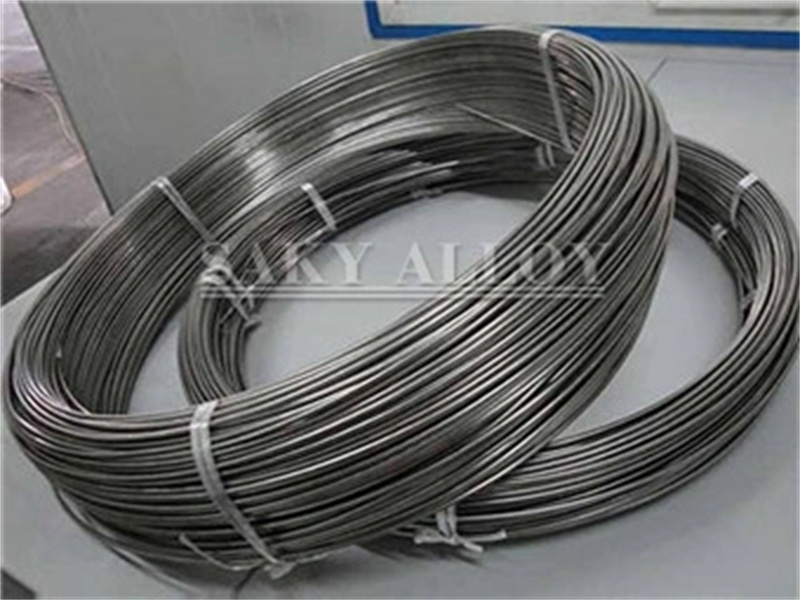

Titanium wire coils, precision spools and straight wire in a modern processing facility

Titanium wire · ASTM B863 / AWS A5.16

ASTM B863 Titanium Wire

Source ASTM B863 titanium wire in multiple grades and diameters, supplied as coil, spool or straight length with traceability.

  • ASTM B863 / ASME SB863
  • Commercially pure and alloy grades subject to the product specification
  • Inspection and traceability options
Request a QuoteView Specifications
Products Categories
Contact us

Wechat:+86 13764965049

Whatsapp:+86 13764965049

E-mail: sales@sakyalloy.com


ASTM B863 Titanium Wire

  • Specifications ASTM B863 ASME SB863
  • Dimensions ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360
  • Diameter 0.1mm to 20mm
  • Form Filler Wire, Coil Wire, Electrode Wire, Welding Wire.
Contact us
product details

Specifications


Specifications ASTM B863,GB/T 3623-2007 AWS A5.16
Grade TA1 TA2 TA3 TC4 GR1 GR2 GR5 GR7 GR9 GR12
Diameter 0.10 mm to 10.0 mm XL
Type Filler Wire, Coil Wire, Electrode Wire, Welding Wire
Condition Cold Drawn, annealed, and descaled
Surface Bright, Pickled
Status Annealed
Shape coil wire, spool wire, straight wire

Equivalent Grades


NAME WERKSTOFF NR. UNS
Titanium Grade 1 3.7025 R50250

Chemical Composition


Grade C O Fe H N
Gr.1  0.08 max 0.18 max 0.20max 0.015 max 0.03 max

Mechanical Properties


Titanium Grade 1 Wire Minimum Typical
Tensile Strength MPa(ksi) 1004 (144) 1045 (146)
0.2% Proof Stress MPa(ksi) 895 (130) 955 (139)
Elongation over 2 Inches % 19 18
Reduction in Area % 42 40
Elastic Modulus GPa(Msi)   114 (16.5)
@ 480 °C Minimum Typical
Tensile Strength MPa(ksi) 716 (104) 735 (107)
0.2% Proof Stress MPa(ksi) 545 (79) 565 (82)
Elongation over 2 Inches % 26 25
Reduction in Area % 63 67

Features & Benefits


Titanium possesses outstanding corrosion resistance, able to withstand the corrosive effects of seawater, acids, and most chemical media.
Titanium rods exhibit an excellent strength-to-weight ratio, being one of the lightest structural materials.
Titanium is a biocompatible material, showing good compatibility with human tissues and bones.
Titanium exhibits excellent stability at high temperatures, maintaining strength and stability in high-temperature environments.
Titanium is a non-magnetic material, making it suitable for applications where magnetic sensitivity is a concern frequency operation.
Titanium has good formability, making it easy to process into various shapes.

Why Choose Us?


1.You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement. (Reports will show on requirement)
4. We guarantee to give a response within 24 hours (usually in the same hour)
5. Provide SGS TUV report.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
7. Provide one-stop service.

Packing


1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Saky Alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as.
1i4g
2ski
3yfq

Leave Your Message

B2B product sourcing

ASTM B863 Titanium Wire: technical and ordering information

Source ASTM B863 titanium wire in multiple grades and diameters, supplied as coil, spool or straight length with traceability. Values shown are a sourcing guide; the approved quotation and purchase order control the final supply.

Grade

Commercially pure and alloy grades subject to the product specification

Standards

ASTM B863 / ASME SB863; AWS A5.16 where welding classification applies

Size range

Existing range includes 0.1–20 mm diameter; coil, spool and straight-length options

Tolerance

ASTM B863 or customer drawing; diameter, ovality and straightness confirmed by RFQ

Inspection

MTC, chemistry and mechanical results, diameter, surface and heat/lot traceability

Supply condition

Bright or pickled surface, coil, spool or straight length

Typical applications

  • General titanium fabrication
  • Wire forming and mesh
  • Fasteners and precision components
  • Welding and industrial wire applications

Frequently asked sourcing questions

Which standard and grade should I specify?

ASTM B863 / ASME SB863; AWS A5.16 where welding classification applies The final grade, revision and supplementary requirements should be stated on the RFQ or purchase order.

Can size and tolerance be customized?

Existing range includes 0.1–20 mm diameter; coil, spool and straight-length options ASTM B863 or customer drawing; diameter, ovality and straightness confirmed by RFQ.

What inspection and documentation are available?

MTC, chemistry and mechanical results, diameter, surface and heat/lot traceability. Supply condition: Bright or pickled surface, coil, spool or straight length.

Get an RFQ-ready response

Include grade, standard, size, tolerance, quantity, destination and required documents.

Request specifications and pricing
