TC4 Titanium Wire
TC4 Titanium Wire supplied to the specified dimensions, condition, tolerance, inspection and material-traceability requirements for industrial procurement.
- Material
- TC4 / Ti-6Al-4V; exact specification and equivalence must be confirmed
- Standard
- GB/T or customer specification; ASTM B863 only when expressly ordered
- Product Form
- Coil, spool or straight wire; diameter, tolerance, package form and weight are confirmed by RFQ
- Documents
- MTC, inspection and heat/lot traceability
Product Detail
Product Introduction
TC4 Titanium Wire is supplied for corrosion-resistant fabrication and precision manufacturing. The final purchase definition must identify the exact material designation, governing specification and revision, dimensions, condition, tolerances, tests and documentation; trade-name or cross-standard equivalence is not assumed.
Product Specifications
| Product | TC4 Titanium Wire | Grade | TC4 / Ti-6Al-4V; exact specification and equivalence must be confirmed |
|---|---|---|---|
| Standard | GB/T or customer specification; ASTM B863 only when expressly ordered | Size & Form | Coil, spool or straight wire; diameter, tolerance, package form and weight are confirmed by RFQ |
| Tolerance | Governing material standard or approved customer drawing | Supply Condition | Bright or pickled surface in coil, spool or straight length |
| Inspection | MTC review, dimensional and surface inspection, heat/lot traceability, with PMI or applicable NDT when specified | Documents | MTC, heat/lot traceability and agreed inspection reports |
Send the complete material RFQ
Include grade, specification revision, dimensions, tolerance, quantity, condition, tests and destination.
Chemical Composition
Weight percent; maximum unless a range is shown. Titanium is the balance. The ordered specification and grade control.
| Grade / UNS | Principal Alloying Elements | Fe max | O max | C max | N max | H max | Ti |
|---|---|---|---|---|---|---|---|
| Grade 5 / R56400 | Al 5.50–6.75; V 3.50–4.50 | 0.40 | 0.20 | 0.08 | 0.05 | 0.015 | Balance |
Mechanical Properties – Annealed Material Reference
| Grade | Ultimate Tensile Strength min | 0.2% Yield Strength min | Elongation min |
|---|---|---|---|
| Grade 5 | 895 MPa | 828 MPa | 10% |
Representative minima only. Product form, section size, heat treatment and the invoked specification determine the certified acceptance values.
Typical Physical Properties
| Grade | Density | Elastic Modulus | Thermal Expansion |
|---|---|---|---|
| Grade 5 | 4.43 g/cm³ | Approx. 114 GPa | Approx. 8.6 µm/m·K |
Typical engineering references, not inspection acceptance limits.
Certificates & Inspection Records
Services We Can Provide
Product Packaging

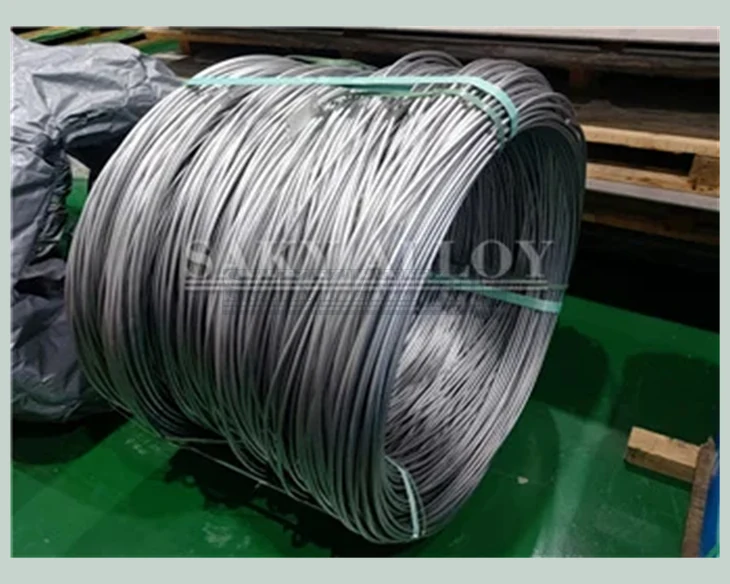

Wire is protected in coils, spools or straight-length bundles with moisture-resistant wrapping and labels for grade, diameter, heat and quantity. Typical export packaging for the same physical product form is shown below; final packing is confirmed for each order.
Application Scenarios
Chemical processing equipment
Material grade, dimensions, condition and inspection must be matched to the application requirements.
Marine and desalination systems
Material grade, dimensions, condition and inspection must be matched to the application requirements.
Industrial fabrication and precision components
Material grade, dimensions, condition and inspection must be matched to the application requirements.
FAQ
What information is required to quote TC4 Titanium Wire?
Provide the titanium grade, product form, dimensional standard or drawing, thread or critical dimensions, quantity, surface treatment, mating parts, service conditions and required inspection documents.
Which standards apply to TC4 Titanium Wire?
GB/T or customer specification; ASTM B863 only when expressly ordered
How are TC4 Titanium Wire inspected?
MTC review, dimensional and surface inspection, heat/lot traceability, with PMI or applicable NDT when specified
