Titanium Threaded Flange
Titanium Threaded Flange supplied by grade, material standard, nominal size, pressure class, facing, bore, bolt pattern, connection details, inspection and documentation.
- Grades
- Grade 2, Grade 5, Grade 7, Grade 12 or specified grade
- Material
- ASTM B381 / ASME SB381 as applicable
- Dimensions
- ASME B16.5 or approved EN/DIN/JIS/customer drawing
- Documents
- MTC, dimensions and heat/lot traceability
Product Detail
Product Introduction

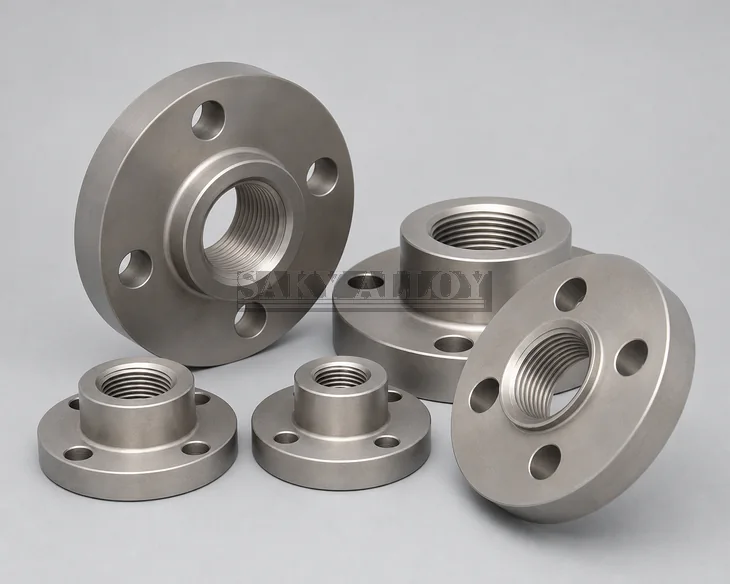

Titanium Threaded Flange is a forged and machined titanium piping component identified by its internally threaded hub for a specified pipe thread. Material grade, dimensional standard, nominal size, pressure class, facing, mating component and service conditions must be reviewed together.
Product Specifications
| Product | Titanium Threaded Flange | Grade | Titanium Grade 2, Grade 5, Grade 7, Grade 12 or specified alloy |
|---|---|---|---|
| Standard | ASTM B381 / ASME SB381 may govern titanium-alloy forgings; ASME B16.5 or an approved EN, DIN, JIS or project standard may govern dimensions, pressure class and facing. The applicable piping code and project specification control selection and rating. | Size & Form | NPS/DN and Class/PN according to the specified dimensional standard or customer drawing |
| Tolerance | Applicable material/dimensional standard and order-defined bore, hub, facing, bolt circle, hole and connection tolerances | Supply Condition | Forged and machined with protected sealing faces, individual identification and reinforced export-case packing |
| Inspection | MTC and heat traceability, PMI when specified, nominal size and pressure class, OD and thickness, bore and connection geometry, bolt circle and holes, facing and surface finish, visual inspection and supplementary NDE when required. | Documents | MTC, heat/lot traceability and agreed inspection reports |
Send the complete material RFQ
Include grade, specification revision, dimensions, tolerance, quantity, condition, tests and destination.
Chemical Composition
Weight percent; maximum unless a range is shown. Titanium is the balance. The ordered specification and grade control.
| Grade / UNS | Principal Alloying Elements | Fe max | O max | C max | N max | H max | Ti |
|---|---|---|---|---|---|---|---|
| Grade 2 / R50400 | — | 0.30 | 0.25 | 0.08 | 0.03 | 0.015 | Balance |
| Grade 5 / R56400 | Al 5.50–6.75; V 3.50–4.50 | 0.40 | 0.20 | 0.08 | 0.05 | 0.015 | Balance |
| Grade 7 / R52400 | Pd 0.12–0.25 | 0.30 | 0.25 | 0.08 | 0.03 | 0.015 | Balance |
| Grade 12 / R53400 | Mo 0.20–0.40; Ni 0.60–0.90 | 0.30 | 0.25 | 0.08 | 0.03 | 0.015 | Balance |
Mechanical Properties – Annealed Material Reference
| Grade | Ultimate Tensile Strength min | 0.2% Yield Strength min | Elongation min |
|---|---|---|---|
| Grade 2 | 345 MPa | 275 MPa | 20% |
| Grade 5 | 895 MPa | 828 MPa | 10% |
| Grade 7 | 345 MPa | 275 MPa | 20% |
| Grade 12 | 483 MPa | 345 MPa | 18% |
Representative minima only. Product form, section size, heat treatment and the invoked specification determine the certified acceptance values.
Typical Physical Properties
| Grade | Density | Elastic Modulus | Thermal Expansion |
|---|---|---|---|
| Grade 2 | 4.51 g/cm³ | Approx. 105 GPa | Approx. 8.6 µm/m·K |
| Grade 5 | 4.43 g/cm³ | Approx. 114 GPa | Approx. 8.6 µm/m·K |
| Grade 7 | Approx. 4.51 g/cm³ | Approx. 105 GPa | Approx. 8.6 µm/m·K |
| Grade 12 | Approx. 4.54 g/cm³ | Approx. 103 GPa | Approx. 8.6 µm/m·K |
Typical engineering references, not inspection acceptance limits.
Certificates & Inspection Records
Services We Can Provide
Product Packaging
Machined faces, bores and bevels are protected with covers or wrapping. Flanges are separated by grade, size and heat, then secured in reinforced export cases with traceability labels.
Application Scenarios
Non-welded threaded connections only where the governing piping specification permits them
Material grade, dimensions, condition and inspection must be matched to the application requirements.
Chemical processing and corrosion-resistant piping
Material grade, dimensions, condition and inspection must be matched to the application requirements.
Marine, desalination and industrial equipment connections
Material grade, dimensions, condition and inspection must be matched to the application requirements.
FAQ
Does ASTM B381 define flange pressure class and dimensions?
No. ASTM B381 primarily covers titanium forgings. State the separate dimensional standard, size, class or PN, facing and project requirements.
Which titanium grade should be selected?
Grade selection depends on service chemistry, temperature, strength, mating materials, fabrication and the governing project specification.
What information is required for quotation?
Provide grade, material and dimensional standards, size, class/PN, facing, bore or connection details, quantity, NDE and certificates.
