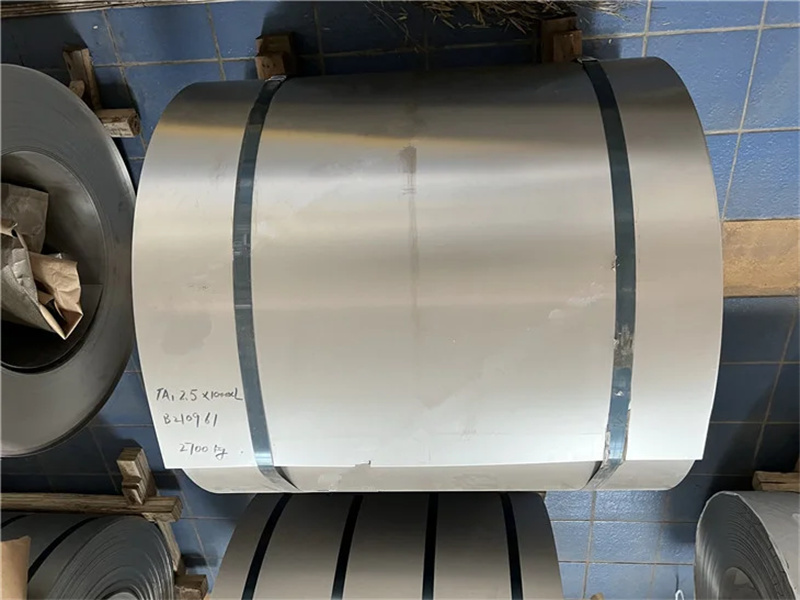

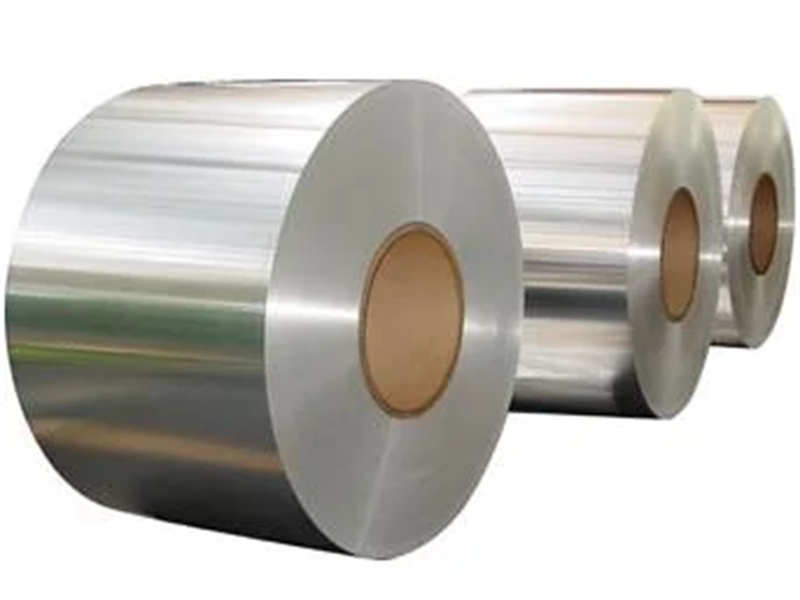

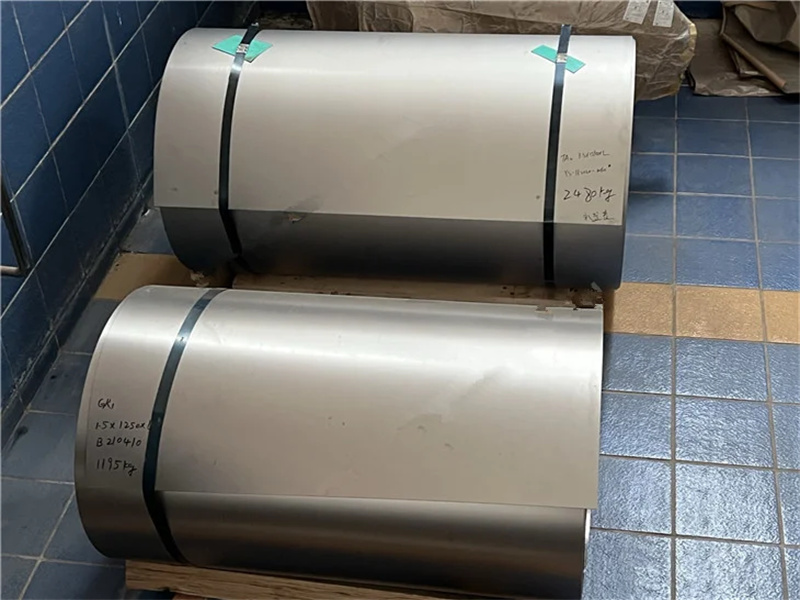

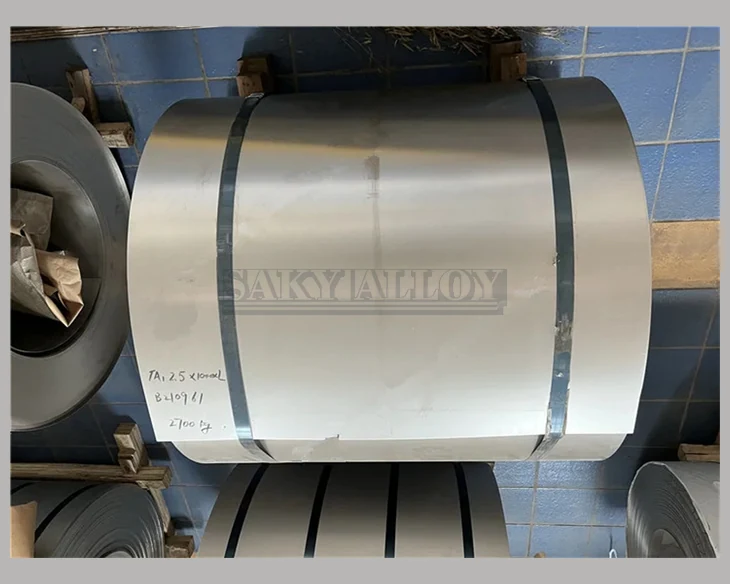

Titanium Grade 3 Coil
Titanium Grade 3 Coil supplied to the specified dimensions, condition, tolerance, inspection and material-traceability requirements for industrial procurement.
- Material
- Titanium Grade 3 / UNS R50550
- Standard
- ASTM B265 / ASME SB265
- Product Form
- Coil or strip; thickness, width, coil ID/OD, coil weight and edge condition are confirmed by RFQ
- Documents
- MTC, inspection and heat/lot traceability
Product Detail
Product Introduction
Titanium Grade 3 Coil is supplied for corrosion-resistant fabrication and precision manufacturing. The final purchase definition must identify the exact material designation, governing specification and revision, dimensions, condition, tolerances, tests and documentation; trade-name or cross-standard equivalence is not assumed.
Product Specifications
| Product | Titanium Grade 3 Coil | Grade | Titanium Grade 3 / UNS R50550 |
|---|---|---|---|
| Standard | ASTM B265 / ASME SB265 | Size & Form | Coil or strip; thickness, width, coil ID/OD, coil weight and edge condition are confirmed by RFQ |
| Tolerance | Governing material standard or approved customer drawing | Supply Condition | Cold rolled and annealed, pickled or bright finish with slit or mill edges |
| Inspection | MTC review, dimensional and surface inspection, heat/lot traceability, with PMI or applicable NDT when specified | Documents | MTC, heat/lot traceability and agreed inspection reports |
Additional Supply & Ordering Details
Useful, technically consistent information consolidated from earlier product pages.
| Grade identity | Grade 3 / UNS R50550 coil is commercially pure titanium with higher strength and lower ductility than Grade 2. The grade should be selected from forming and strength requirements. |
|---|---|
| Processing definition | State ASTM B265, condition, thickness, width, coil ID/OD, weight, edge, surface, camber, flatness and intended forming severity. |
| Fabrication review | Provide minimum bend radius, draw depth, grain direction, welding route and finished-component property requirements before substituting Grade 3 for Grade 2. |
| Inspection | Request Grade 3 chemistry and mechanical results, dimensional mapping, edge and surface inspection, coil identity and full heat/lot traceability. |
Send the complete material RFQ
Include grade, specification revision, dimensions, tolerance, quantity, condition, tests and destination.
Chemical Composition
Weight percent; maximum unless a range is shown. Titanium is the balance. The ordered specification and grade control.
| Grade / UNS | Principal Alloying Elements | Fe max | O max | C max | N max | H max | Ti |
|---|---|---|---|---|---|---|---|
| Grade 3 / R50550 | — | 0.30 | 0.35 | 0.08 | 0.05 | 0.015 | Balance |
Mechanical Properties – Annealed Material Reference
| Grade | Ultimate Tensile Strength min | 0.2% Yield Strength min | Elongation min |
|---|---|---|---|
| Grade 3 | 450 MPa | 380 MPa | 18% |
Representative minima only. Product form, section size, heat treatment and the invoked specification determine the certified acceptance values.
Typical Physical Properties
| Grade | Density | Elastic Modulus | Thermal Expansion |
|---|---|---|---|
| Grade 3 | 4.51 g/cm³ | Approx. 105 GPa | Approx. 8.6 µm/m·K |
Typical engineering references, not inspection acceptance limits.
Certificates & Inspection Records
Services We Can Provide
Product Packaging

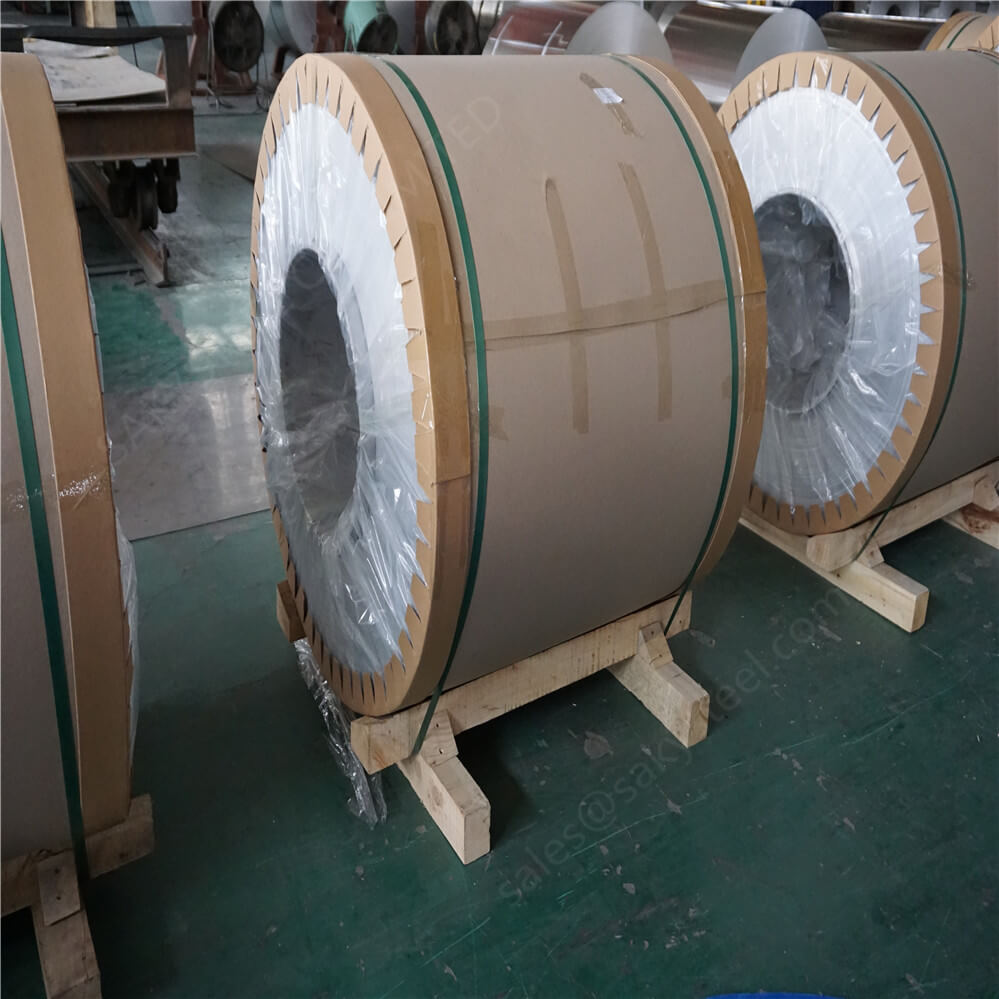

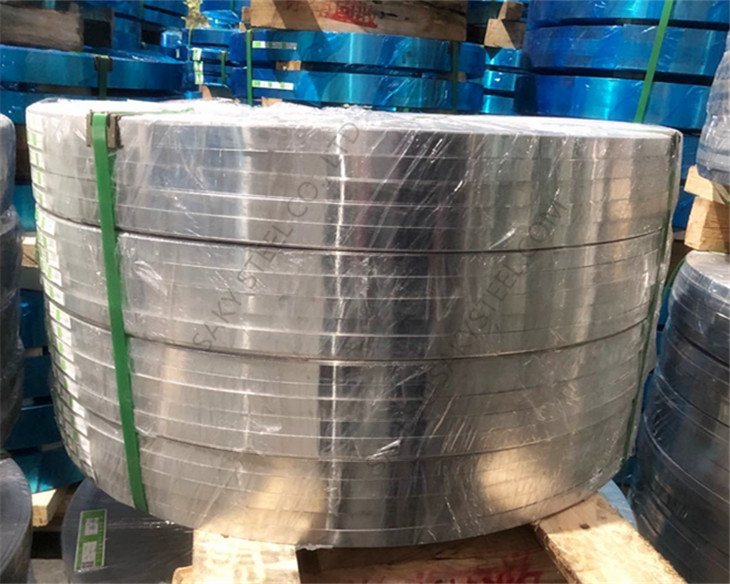

Coils and slit strip are wrapped against moisture and edge damage, secured on skids or in export cases, and labeled with grade, heat, size, coil weight and edge condition. Typical export packaging for the same physical product form is shown below; final packing is confirmed for each order.
Application Scenarios
Chemical processing equipment
Material grade, dimensions, condition and inspection must be matched to the application requirements.
Marine and desalination systems
Material grade, dimensions, condition and inspection must be matched to the application requirements.
Industrial fabrication and precision components
Material grade, dimensions, condition and inspection must be matched to the application requirements.
FAQ
What information is required to quote Titanium Grade 3 Coil?
Provide the titanium grade, product form, dimensional standard or drawing, thread or critical dimensions, quantity, surface treatment, mating parts, service conditions and required inspection documents.
Which standards apply to Titanium Grade 3 Coil?
ASTM B265 / ASME SB265
How are Titanium Grade 3 Coil inspected?
MTC review, dimensional and surface inspection, heat/lot traceability, with PMI or applicable NDT when specified
