Grade 5 Ti-6Al-4V Titanium Round Bar
Source Grade 5 Ti-6Al-4V titanium round bar for aerospace, marine and industrial parts, with inspection and traceability options.
- Material
- Grade 5 / Ti-6Al-4V / UNS R56400
- Standard
- ASTM B348; applicable aerospace orders may reference AMS 4928
- Supply
- Annealed, hot rolled, forged, peeled or centerless ground
- Documents
- MTC, inspection and heat/lot traceability
Product Detail
Product Introduction
Source Grade 5 Ti-6Al-4V titanium round bar for aerospace, marine and industrial parts, with inspection and traceability options. Final supply is controlled by the grade, specification revision, dimensions, condition, tolerance, inspection and documentation stated on the approved order.
Product Specifications
| Product | Grade 5 Ti-6Al-4V Titanium Round Bar | Grade | Grade 5 / Ti-6Al-4V / UNS R56400 |
|---|---|---|---|
| Standard | ASTM B348; applicable aerospace orders may reference AMS 4928 | Size & Form | Round bar and cut blanks; diameter, length and machining allowance are quotation-controlled |
| Tolerance | Mill tolerance or customer drawing; ground tolerances available after technical review | Supply Condition | Annealed, hot rolled, forged, peeled or centerless ground |
| Inspection | Chemical and mechanical testing, dimensional and visual inspection, traceability; UT where required | Documents | MTC, heat/lot traceability and agreed inspection reports |
Additional Supply & Ordering Details
Useful, technically consistent information consolidated from earlier product pages.

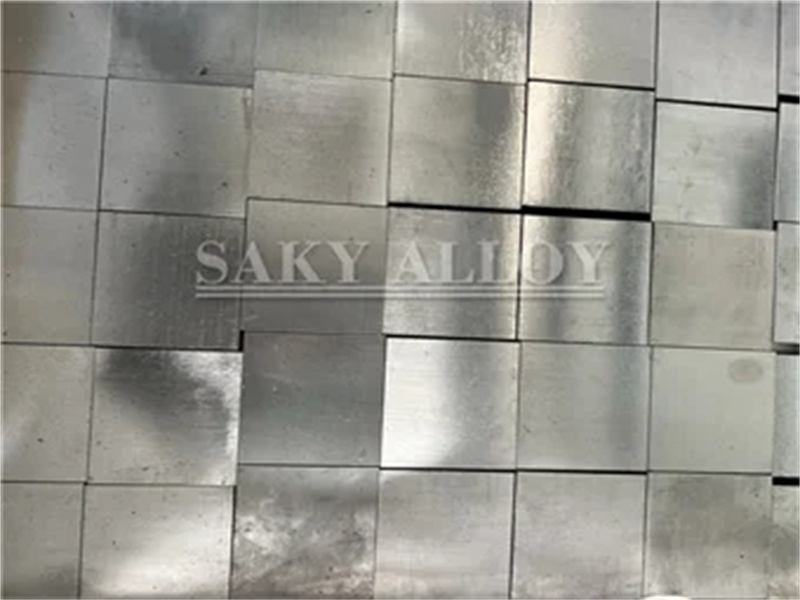

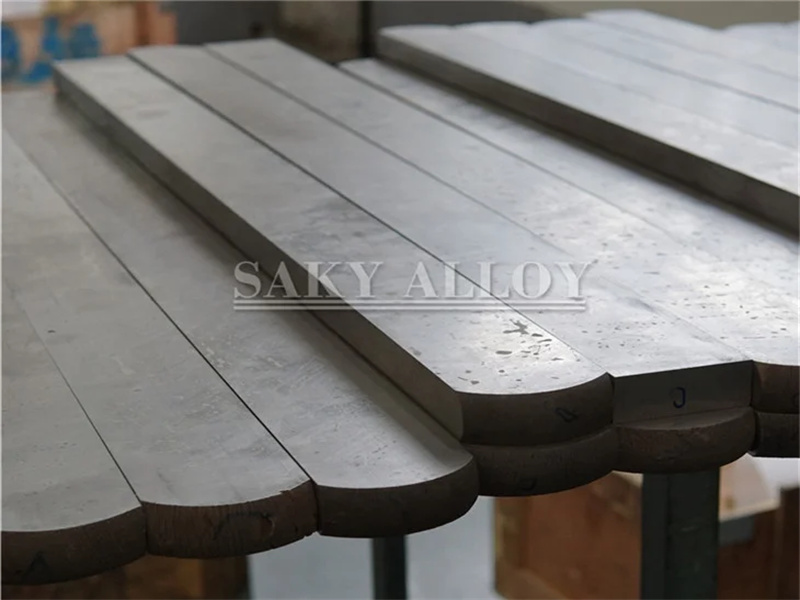

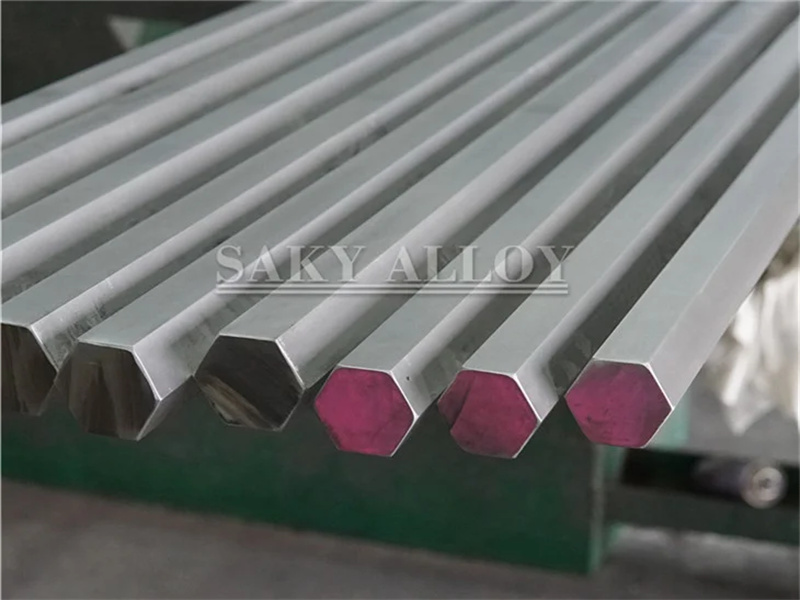

| Supply forms retained from the legacy rod page | Round bar and rod are standard supply forms; flat, square, hexagonal, threaded or hollow sections require feasibility and drawing review. |
|---|---|
| Dimensional control | Diameter, length, straightness, tolerance class and machining allowance are confirmed by RFQ; precision peeled or centerless-ground supply is available by agreement. |
| Quality control | Heat/lot traceability, chemistry, tensile results, dimensional and surface inspection are standard review points; ultrasonic testing can be specified where applicable. |
Send the complete material RFQ
Include grade, specification revision, dimensions, tolerance, quantity, condition, tests and destination.
Chemical Composition
Weight percent; maximum unless a range is shown. Titanium is the balance. The ordered specification and grade control.
| Grade / UNS | Principal Alloying Elements | Fe max | O max | C max | N max | H max | Ti |
|---|---|---|---|---|---|---|---|
| Grade 5 / R56400 | Al 5.50–6.75; V 3.50–4.50 | 0.40 | 0.20 | 0.08 | 0.05 | 0.015 | Balance |
Mechanical Properties – Annealed Material Reference
| Grade | Ultimate Tensile Strength min | 0.2% Yield Strength min | Elongation min |
|---|---|---|---|
| Grade 5 | 895 MPa | 828 MPa | 10% |
Representative minima only. Product form, section size, heat treatment and the invoked specification determine the certified acceptance values.
Typical Physical Properties
| Grade | Density | Elastic Modulus | Thermal Expansion |
|---|---|---|---|
| Grade 5 | 4.43 g/cm³ | Approx. 114 GPa | Approx. 8.6 µm/m·K |
Typical engineering references, not inspection acceptance limits.
Certificates & Inspection Records
Services We Can Provide
Product Packaging
Bars and rods are separated by grade and heat, protected against surface damage and secured in bundles or export cases with identification and traceability labels. Typical export packaging for the same physical product form is shown below; final packing is confirmed for each order.
Application Scenarios
Aerospace structures
Material grade, dimensions, condition and inspection must be matched to the application requirements.
Marine and motorsport components
Material grade, dimensions, condition and inspection must be matched to the application requirements.
High-strength fasteners
Material grade, dimensions, condition and inspection must be matched to the application requirements.
FAQ
What information is required to quote Grade 5 Ti-6Al-4V Titanium Round Bar?
Provide the titanium grade, product form, dimensional standard or drawing, thread or critical dimensions, quantity, surface treatment, mating parts, service conditions and required inspection documents.
Which standards apply to Grade 5 Ti-6Al-4V Titanium Round Bar?
ASTM B348; applicable aerospace orders may reference AMS 4928
How are Grade 5 Ti-6Al-4V Titanium Round Bar inspected?
Chemical and mechanical testing, dimensional and visual inspection, traceability; UT where required
