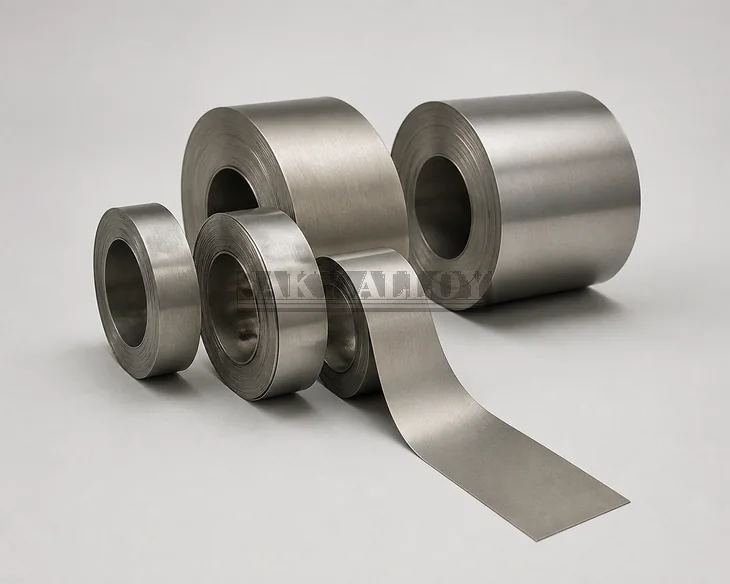

Grade 2 Titanium Foil
Grade 2 titanium foil supplied in thin-gauge rolls or cut sheets with order-defined thickness, width, surface, edge, flatness, coil dimensions and inspection.
- Material
- Grade 2 / UNS R50400
- Standard
- ASTM B265 / ASME SB265 when applicable
- Form
- Foil roll, slit coil or cut sheet
- Documents
- MTC, dimensions and heat/lot traceability
Product Detail
Product Introduction
Grade 2 titanium foil is a thin cold-rolled commercially pure titanium product used where low section thickness, corrosion resistance and formability are required. Foil is ordered by an explicit thickness and tolerance rather than by an assumed trade boundary between foil, strip and sheet.
Product Specifications
| Product | Grade 2 Titanium Foil | Grade | Titanium Grade 2 / UNS R50400 |
|---|---|---|---|
| Standard | ASTM B265 / ASME SB265 may apply to Grade 2 strip, sheet and plate when the ordered dimensions fall within its scope. Customer foil specifications, inspection method and approved purchase requirements control thin-gauge acceptance. | Size & Form | Thin-gauge roll, slit coil or cut foil sheet; exact thickness, width, coil ID/OD and sheet length by RFQ |
| Tolerance | Purchase-order thickness, width, edge, camber, flatness and surface requirements | Supply Condition | Cold rolled and annealed; pickled, bright or order-defined clean surface with slit or mill edges |
| Inspection | MTC review, thickness mapping, width and length or coil checks, surface and edge inspection, flatness or camber where specified, and heat/lot traceability. | Documents | MTC, heat/lot traceability and agreed inspection reports |
Send the complete material RFQ
Include grade, specification revision, dimensions, tolerance, quantity, condition, tests and destination.
Chemical Composition
Weight percent; maximum unless a range is shown. Titanium is the balance. The ordered specification and grade control.
| Grade / UNS | Principal Alloying Elements | Fe max | O max | C max | N max | H max | Ti |
|---|---|---|---|---|---|---|---|
| Grade 2 / R50400 | — | 0.30 | 0.25 | 0.08 | 0.03 | 0.015 | Balance |
Mechanical Properties – Annealed Material Reference
| Grade | Ultimate Tensile Strength min | 0.2% Yield Strength min | Elongation min |
|---|---|---|---|
| Grade 2 | 345 MPa | 275 MPa | 20% |
Representative minima only. Product form, section size, heat treatment and the invoked specification determine the certified acceptance values.
Typical Physical Properties
| Grade | Density | Elastic Modulus | Thermal Expansion |
|---|---|---|---|
| Grade 2 | 4.51 g/cm³ | Approx. 105 GPa | Approx. 8.6 µm/m·K |
Typical engineering references, not inspection acceptance limits.
Certificates & Inspection Records
Services We Can Provide
Product Packaging
Coils and slit strip are wrapped against moisture and edge damage, secured on skids or in export cases, and labeled with grade, heat, size, coil weight and edge condition.
Application Scenarios
Chemical process components and linings
Material grade, dimensions, condition and inspection must be matched to the application requirements.
Precision shims and formed components
Material grade, dimensions, condition and inspection must be matched to the application requirements.
Electrochemical and energy equipment
Material grade, dimensions, condition and inspection must be matched to the application requirements.
FAQ
What thickness is considered titanium foil?
Foil is a commercial thin-gauge description rather than a universal boundary. The order should state exact thickness, tolerance and applicable product specification.
Can Grade 2 titanium foil be supplied in rolls and sheets?
Yes, subject to thickness, width, coil dimensions, cut length, flatness, edge and production availability.
What should be included in an RFQ?
Provide grade, thickness and tolerance, width, roll or cut-sheet form, coil ID/OD or length, edge, surface, quantity, tests and certificates.
